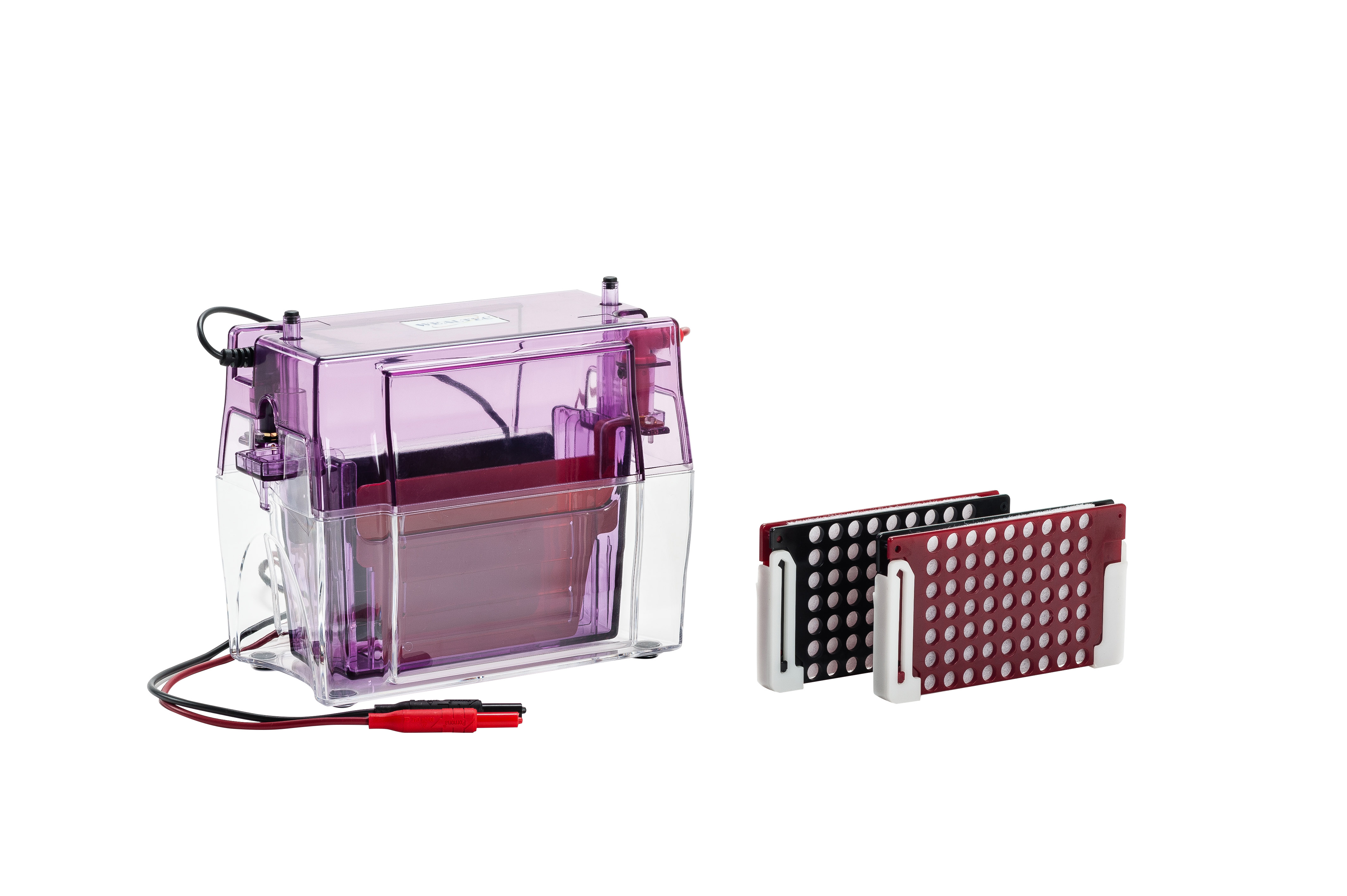

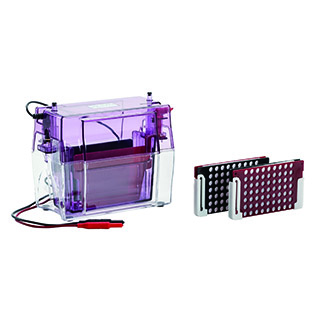

E-Blotter, so called wet blotter, is a high resolution gel transfer apparatus, which includes one electrophoresis tank, one cassette holder and two sandwich blotting cassettes and one electrode stand. As applied with V-GES electrophoresis tank, it can transfers two gels simultaneously and apply to protein SDS-PAGE and agarose gels. ELITE series are recommended power supplies to combine as perfect blotting system.
- Specification
- Features
- Ordering
- Download
| Gel size |
110 x 75mm ( W x H) |
| Sponge size |
110 x 75mm ( W x H) |
| Transfer capability |
1 or 2 gels |
| Blotter module |
2 cassettes simultaneous |
| Buffer requirement |
1,450ml |
| Cassette dimension |
140 x 11 x 77mm (W x D x H) |
| Distance cathode to anode |
5cm |
| Weight |
1kg |
| Physical dimensions |
200 x 130 x 165mm (W x D x H) |
| Certification |
CE |
| Recommend power supply |
ELITE 200/ 300/ 300plus / 600 |
| The spec is subject to change without prior notice. |
|
Features
Easy handling and maintenance
Sufficient buffer without the need for extra cooling device
Cassette assembly clamps for holding blotting sandwiches
Capable of transferring two gels simultaneously
Ordering Information
| Catalog Number |
Description |
| 1030201 |
E-Blotter complete system, system includes electrophoresis tank, E-Blotter module, instruction manual |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| E-Blotter Cassette holder |
|
E-Blotter Cassette holder, holder without electrode plates, 1 pcs
|
|
|
|
|
| |
 |
| Electrode plate set (Black) |
|
E-Blotter Black electrode plate set, set includes plate with eletrode & banana-plug assembly.
|
|
|
|
|
| |
 |
| Electrode plate set (Red) |
|
E-Blotter Red electrode plate set, set includes plate with eletrode & banana-plug assembly.
|
|
|
|
|
| |
 |
| Blotter cassette |
|
Blotter cassette, Red and black Cassette plate with clamp/ 2 sets, Blotting sponge for E-Blotter.
|
|
|
|
|
|
|
|
|
