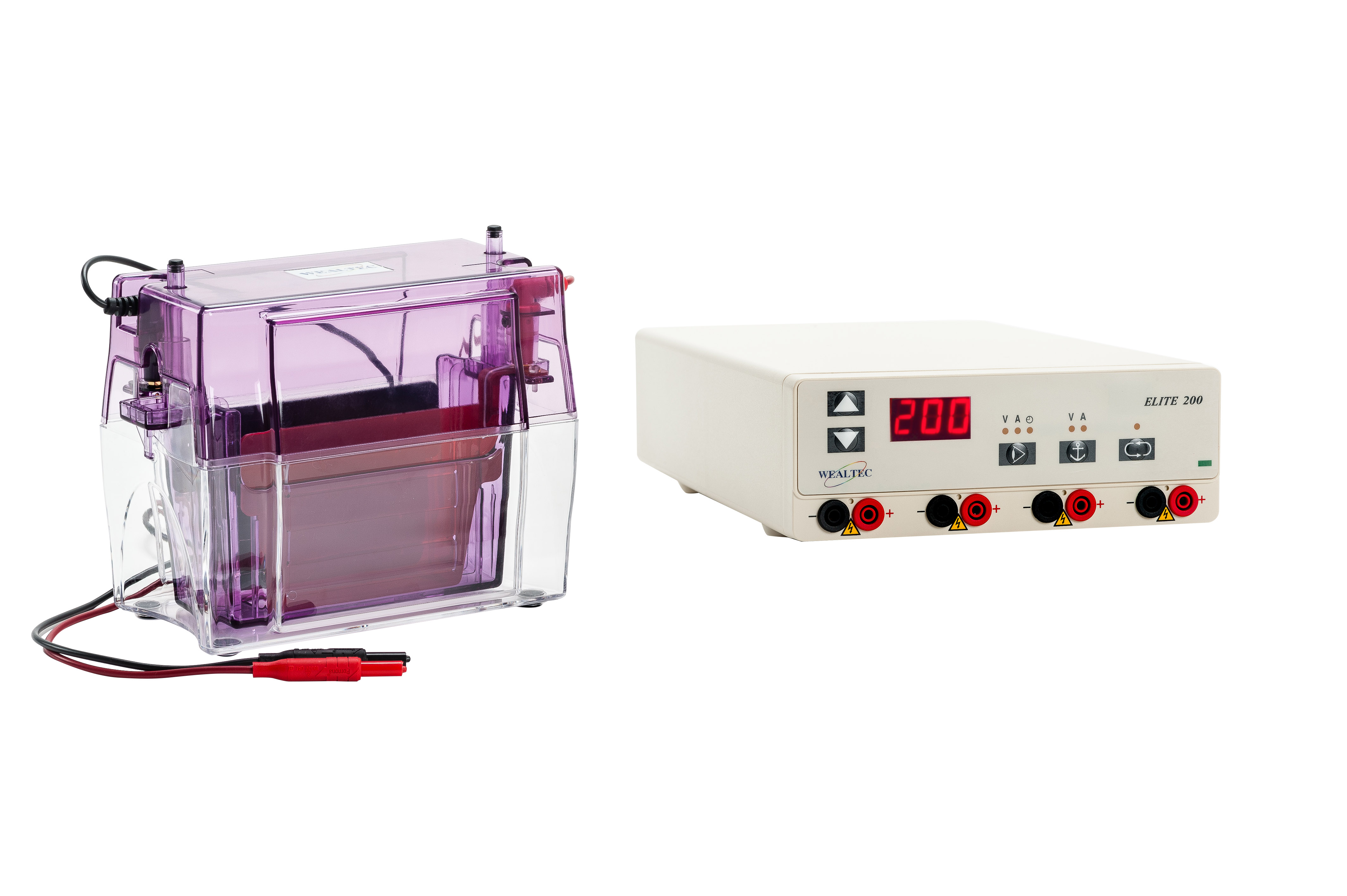

E-Blotter, so called wet blotter, is a high resolution gel transfer apparatus, which includes one electrophoresis tank, one cassette holder and two sandwich blotting cassettes and one electrode stand. As applied with V-GES electrophoresis tank, it can transfers two gels simultaneously and apply to protein SDS-PAGE and agarose gels. ELITE series are recommended power supplies to combine as perfect blotting system.
ELITE 300 Plus
The Elite 300 plus, provides the maximum voltage output of 300V and current output 500mA, with 4 sets of output terminals mainly for routine electrophoresis with nucleic acid and SDS-PAGE. With high accuracy and stable output applicable for wet transfer. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings. Three digits seven segments LED readout voltage, current and time. Error messages includes no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. IQ / PQ / OQ protocol is available.
- Specification
- Features
- Ordering
- Download
E-Blotter
| Gel size |
110 x 75mm ( W x H) |
| Sponge size |
110 x 75mm ( W x H) |
| Transfer capability |
1 or 2 gels |
| Blotter module |
2 cassettes simultaneous |
| Buffer requirement |
1,450ml |
| Cassette dimension |
140 x 11 x 77 mm (W x D x H) |
| Distance cathode to anode |
5cm |
| Weight |
3.5kg |
| Physical dimensions |
200 x 130 x 1,655mm (W x D x H) |
| Certification |
CE |
| The spec is subject to change without prior notice. |
|
ELITE 300 Plus
| Voltage automatic |
Yes |
| Current automatic |
Yes |
| Output Terminals |
4 sets |
| Current adjust steps |
4-500mA in 1 mA |
| Voltage in 1 volt steps |
10-300 V |
| Output power |
90 W max. |
| Operating Temperature |
0-40℃ |
| Timer |
0-999 mins |
| Display |
3 digit 7 seg LED |
| Touch Pad |
Yes |
| Alarm |
Yes |
| Input Power |
120V / 230V , 50-60 Hz |
| Physical dimensions |
240 x 320 x 73mm (W x D x H) |
| Weight |
2kg |
| Certification |
CE |
*The spec is subject to change without prior notice.
**ELITE 200/300/200U/300U/600U power supply comply with EN 61010-1
|
|
Features
No load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, current differential alarm
Three digit seven segment LED read out voltage, current and time
Small footprint, stackable, outshell use fire resistance material
Trustable and accurate power source in the market
Complete error messages for trouble shooting
Membrane key pad for functional setting
Up to four sets output
Ordering Information
| Catalog Number |
Description |
| 1030211 |
E-Blotter complete system + power supply, system includes electrophoresis tank, E-Blotter module, instruction manual, ELITE 300 Plus Power Supply, 120V, 50/60Hz |
| 1030212 |
E-Blotter complete system + power supply, system includes electrophoresis tank, E-Blotter module, instruction manual, ELITE 300 Plus Power Supply, 230V, 50/60Hz |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| E-Blotter Cassette holder |
|
E-Blotter Cassette holder, holder without electrode plates, 1 pcs
|
|
|
|
|
| |
 |
| Electrode plate set (Black) |
|
E-Blotter Black electrode plate set, set includes plate with eletrode, and banana-plug assembly.
|
|
|
|
|
| |
 |
| Electrode plate set (Red) |
|
E-Blotter Red electrode plate set, set includes plate with eletrode, and banana-plug assembly.
|
|
|
|
|
| |
 |
| Blotter cassette |
|
Blotter cassette, Red and black Cassette plate with clamp/ 2 sets, Blotting sponge for E-Blotter.
|
|
|
|
|
|
|
|
|
