GES Complete
Home >> Products  >>  Electrophoresis System and Blotting >>Horizontal Electrophoresis >>GES Complete >>Product Info

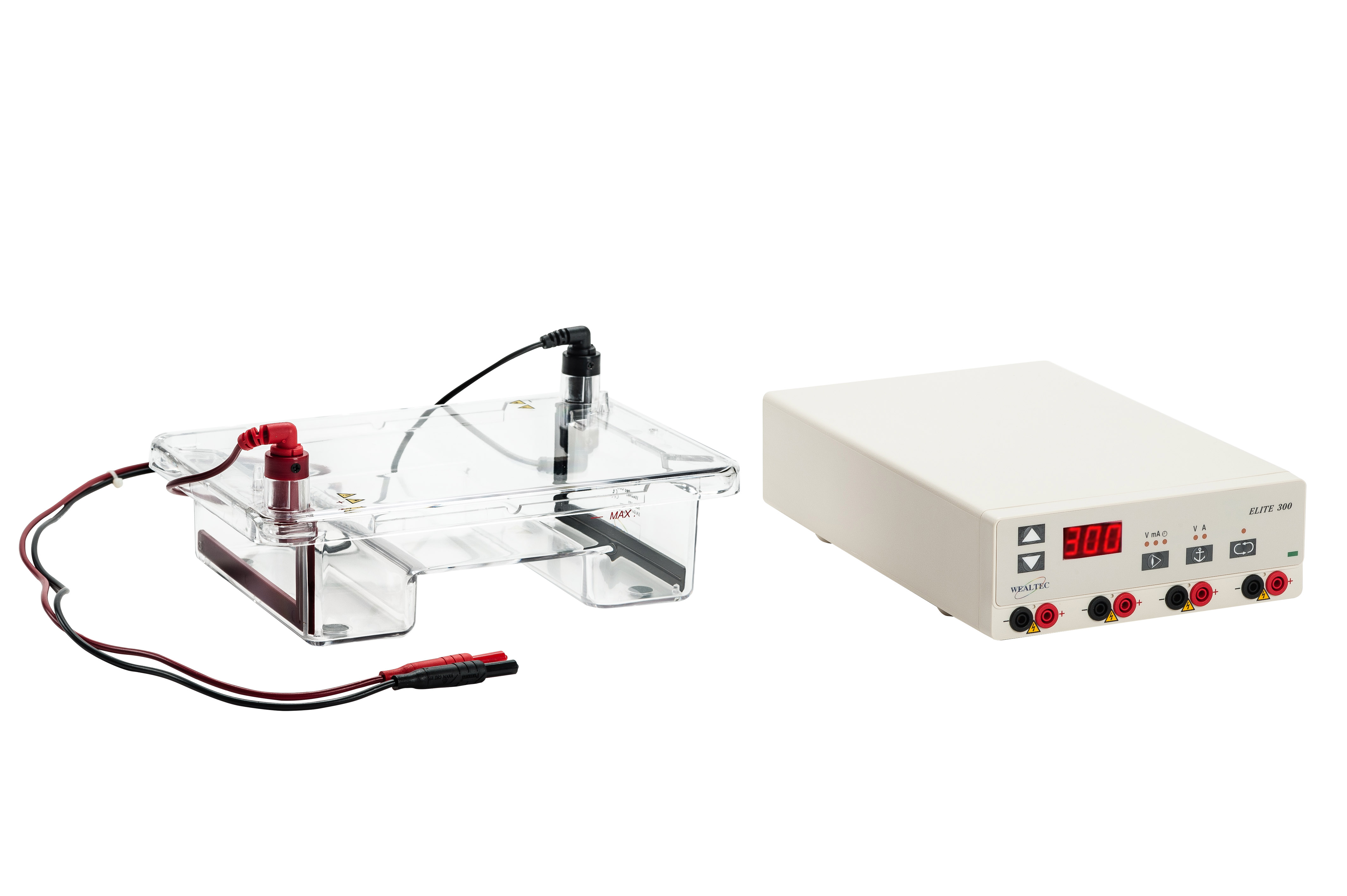

GES (15 x 15cm)

Horizontal gel electrophoresis system, GES with variable tray selection of 10 x 15cm, 7 x 15cm, and 15 x 15 cm is the ideal submarine cell made by injection mode technology for DNA and RNA separation. GES systems can run up to 40 samples at a time. Unique Dams-claw design guarantees no leakage while gel casting. Quick assembling L type electrode is easily to be cleaned and replaced.

ELITE 300

The Elite 300, provides the maximum voltage output of 300V and current output 400mA, with 4 sets output terminal mainly for routine electrophoresis with nucleic acid and SDS-PAGE. With high accuracy and stable output applicable for wet transfer. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings. Three digits seven segments LED readout voltage, current and time. Error messages includes no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. IQ / PQ / OQ protocol is available.

  • Specification
  • Features
  • Ordering
  • Download

GES

Material UV transparent poly carbonate
Fluorescent ruler Yes
Tray size (mm) 150 x 150
Electrode Gold-plated electrode with platinum wire
Leakage free gel casting Dams-claw*
Number of teeth 15, 20
Thickness of comb (mm) 1.0
Sample throughput Max. 40
Buffer Volume (ml) 650 to 1000
Cable Safety black & red cable
Physical dimensions (mm) 270 x 175 x 100 (W x D x H)
Weight (kg) 2
Certification CE
The spec is subject to change without prior notice.

*Patent no.:203646/ US6,576,109 B1 / 2000-006995 / 20017041.4

*Dams-claw is the patent of Wealtec Bioscience

ELITE 300

Voltage automatic crossover Yes
Current automatic crossover Yes
Output Terminals 4 sets
Current adjust steps 4-400mA in 1 mA
Voltage in 1 volt steps 10-300 V
Output power 75 W max.
Operating Temperature 0-40℃
Timer 0-999 mins
Display 3 digit 7 seg LED
Touch Pad Yes
Alarm Yes
Input Power 120V / 230V , 50-60 Hz
Physical dimensions (mm) 240 x 320 x 73 (W x D x H)
Weight (kg) 2.0
Certification CE
*The spec is subject to change without prior notice.

**ELITE 200/300/200U/300U/600U power supply comply with EN 61010-1

Features

  • Unique anti-leakage design for gel casting system

  • Fluorescence ruler printed on the sample tray

  • UV transparent sample tray

  • Trustable and accurate power source in the market

  • Small footprint, stackable, outshell use fire resistance material

  • Up to four sets output

  • Membrane key pad for functional setting

  • Three digit seven segment LED read out voltage,current and time

  • Complete error messages for trouble shooting

Ordering Information

Catalog Number Description
1011023 GES Cell complete system(15 x 15cm Tray) + ELITE 300 Power Supply system , 120V
1011024 GES Cell complete system(15 x 15cm Tray) + ELITE 300 Power Supply system , 230V

Download

Flyer
GES horizontal gel electrophoresis tank

Accessories

UV-transparent tray 7 x 15 cm
UV-transparent tray 7 x 15 cm, for GES Cell.


UV-transparent tray 10 x 15 cm
UV-transparent tray 10 x 15 cm, for GES Cell.


UV-transparent tray 15 x 15 cm
UV-transparent tray 15 x 15 cm, for GES Cell


Comb 15-teeth 0.75mm (GES)
15 teeth fixed height comb, 0.75 mm thick, for GES Cell.


Comb 15-teeth 1.0mm (GES)
15 teeth fixed height comb, 1.0 mm thick, for GES Cell.


Comb 15-teeth 1.5mm (GES)
15 teeth fixed height comb, 1.5 mm thick, for GES Cell.


Comb 20-teeth 0.75mm (GES)
20 teeth fixed height comb, 0.75 mm thick, for GES Cell.


Comb 20-teeth 1.0mm (GES)
20 teeth fixed height comb, 1.0 mm thick, for GES Cell.


Comb 20-teeth 1.5mm (GES)
20 teeth fixed height comb, 1.5 mm thick, for GES Cell.
