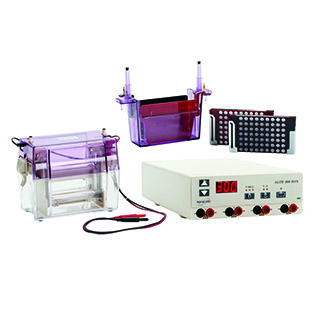

V-GES
V-GES, the midi vertical electrophoresis system, comprises with tank, electrode module, casting module, and optional blotting module. Electrophoresis tank was built by injection mode technology. Special anti-leak rubber and clasp-release design guarantee leakage free while gel casting. Three thicknesses spacers, 0.5, 0.75 and 1.0mm, and two types comb, 10 and 15 well are available.
E-Blotter
E-Blotter is a high resolution gel transfer apparatus, which includes one electrophoresis tank, one cassette holder and two sandwich blotting cassettes and one pair electrode. It can transfers two gels simultaneously and apply to protein SDS-PAGE and agarose gels.
ELITE 300 Plus
The Elite 300 plus, provides the maximum voltage output of 300V and current output 500mA, with 4 sets of output terminals mainly for routine electrophoresis with nucleic acid and SDS-PAGE. With high accuracy and stable output applicable for wet transfer. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings.
- Specification
- Features
- Ordering
- Download
V-GES
| Gel size (mm) |
100 x 80 (W x H) |
| Gel thickness (mm) |
0.5 / 0.75 / 1.0 |
| Sponge size (mm) |
- |
| Applicable number of samples |
10 to 30 |
| Number of gels |
1 or 2 gels |
| Transfer capability |
- |
| Blotter module |
- |
| Buffer requirement (ml) |
- |
| Upper buffer volume (ml) |
250 to 300 |
| Lower buffer volume (ml) |
500 to 1,400 |
| Cassette dimensions (mm) |
- |
| Distance cathode to anode |
- |
| Electrode module w/ platinum wire |
For 1 or 2 gels operation* |
| Casting module |
2 sets for gel casting* |
| Glass plate |
5 sets |
| Selectable comb teeth |
10/15 teeth |
| Comb thickness (mm) |
0.5 / 0.75 / 1.0 |
| Physical dimensions (mm) |
200 x 130 x 165 (W x D x H) |
| Weight (kg) |
3 |
| Certification |
CE |
| Recommend Power Supply |
ELITE 200 / 300 / 300PLUS / 600U |
The spec is subject to change without prior notice.
Clasp-release design* is the patent of Wealtec Bioscience
Patent No.: M277920/ ZL 2005 2 0009035.8 / Nr. 20 2005 005 050.4 /
2005-002015 /US 7,5,44,279 B2
|
|
E-Blotter
| Gel size (mm) |
110 x 75 ( W x H) |
| Sponge size (mm) |
110 x 75 ( W x H) |
| Transfer capability |
1 or 2 gels |
| Blotter module |
2 cassettes simultaneous |
| Buffer requirement (ml) |
1,450 |
| Cassette dimension |
140 x 11 x 77 mm (W x D x H) |
| Distance cathode to anode (cm) |
5 |
| Weight (kg) |
1 |
| Physical dimensions (mm) |
200 x 130 x 165 (W x D x H) |
| Certification |
CE |
| Recommend power supply |
ELITE 200/ 300/ 300plus / 600 |
The spec is subject to change without prior notice.
|
|
ELITE 300 PLUS
| Voltage automatic |
Yes |
| Current automatic |
Yes |
| Output Terminals |
4 sets |
| Current adjust steps |
4-500mA in 1 mA |
| Voltage in 1 volt steps |
10-300 V |
| Output power |
90 W max. |
| Operating Temperature |
0-40℃ |
| Timer |
0-999 mins |
| Display |
3 digit 7 seg LED |
| Touch Pad |
Yes |
| Alarm |
Yes |
| Input Power |
120V / 230V , 50/60 Hz |
| Physical dimensions (mm) |
240 x 320 x 73 (W x D x H) |
| Weight (kg) |
2.0 |
| Certification |
CE |
*The spec is subject to change without prior notice.
**ELITE 200/300/200U/300U/600U power supply comply with EN 61010-1
|
|
Features
Interchangeable module for SDS-PAGE electrophoresis and blotting Sufficient buffer with no need for extra cooling device Sandwich cassette assembly clamps for blotting Capable of transferring two gels simultaneously Anti-leakage clasp-release gel casting module Designed for protein and DNA electrophoresis Easy handling and no maintenance design No load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, current differential alarm Three digit seven segment LED read out voltage, current and time Small footprint, stackable, outshell use fire resistance material Trustable and accurate power source in the market Complete error messages for trouble shooting Membrane key pad for functional setting Up to four sets output
Ordering Information
| Catalog Number |
Description |
| 1030011 |
V-GES + E-Blotter complete system, system includes V-GES(0.5mm) complete system, E-Blotter module, and ELITE 300 Plus Power Supply, 120V, 50/60Hz |
| 1030012 |
V-GES + E-Blotter complete system, system includes V-GES(0.5mm) complete system, E-Blotter module, and ELITE 300 Plus Power Supply, 230V, 50/60Hz |
| 1030013 |
V-GES + E-Blotter complete system, system includes V-GES(0.75mm) complete system, E-Blotter module, and ELITE 300 Plus Power Supply, 120V, 50/60Hz |
| 1030014 |
V-GES + E-Blotter complete system, system includes V-GES(0.75mm) complete system, E-Blotter module, and ELITE 300 Plus Power Supply, 230V, 50/60Hz |
| 1030015 |
V-GES + E-Blotter complete system, system includes V-GES(1.0mm) complete system, E-Blotter module, and ELITE 300 Plus Power Supply, 120V, 50/60Hz |
| 1030016 |
V-GES + E-Blotter complete system, system includes V-GES(1.0mm) complete system, E-Blotter module, and ELITE 300 Plus Power Supply, 230V, 50/60Hz |
|
|
 |
