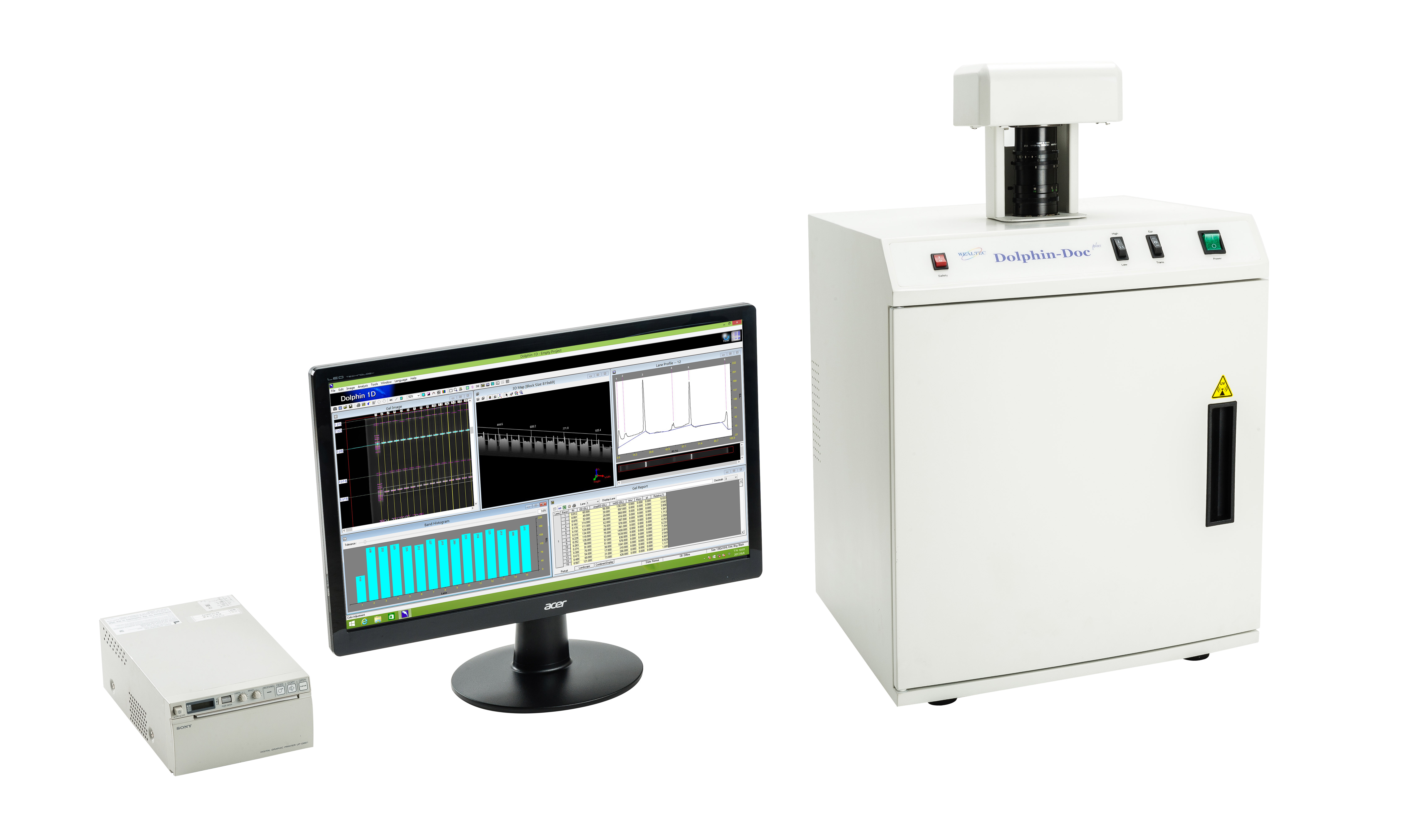

Dolphin-Doc Plus
A new milestone in gel documentation market, comprises with darkroom, room temperature 16 bit digital B/W camera, manual adjustment lens, Epi-White light and 302nm UV transilluminator allows to capture various images such as X-ray film or SDS-PAGE and agarose gel stained by EtBr, SYBR Green, SYPRO Orange, SYBR Gold, Coomassie Brilliant Blue, and silver stain.
1D software package is the standard of the Dolphin Doc plus system, the main function includes concisely image capturing interface, 3D image profile display, image blending and labeling, operation quick guide, 8-16 bits pixel depth simulation, step-by-step motion tracking, precisely lane and band profile output aligns with lane image. Colony Petri dish, blotting membrane, microtiter plate as well as colorimetric assay all included.
- Specification
- Features
- Ordering
- Download
| CCD depth |
B/W 16 bit |
| Chip size |
2/3" |
| Resolution |
5.0M pixels |
| Cooling |
Air, R-T |
| Operating temperature |
0 - 60°C |
| Lens |
f1.4, 11.5 - 69 mm (6x) manual adjustment |
| Filter |
HT-Amber filter and 2X close-up lens |
| Epi light source |
U10 LED |
| UV transilluminator |
302nm, 25 x 25cm working area |
| Full-open door |
Yes |
| Slide-out frame |
Yes |
| UV radiation safety Interlock |
Yes |
| UV light safety switch |
Yes |
| Software |
Dolphin-1D analysis software |
| Physical dimensions (mm) |
420 x 460 x 680 (W x D x H) |
| Power |
100 - 240V, 50-60Hz, 120W |
| Weight |
35 kg |
| Certification |
CE |
| Optional |
| Thermal printer |
Digital thermal printer / laser / Inkjet printer |
| Converter plate |
UV/White light converter plate or BW-20 |
| UV radiation block cover |
Gel excision, visualization |
The spec is subject to change without prior notice.
|
|
Features
Compatible image file formats: JPG, BMP, JPEG, DFN, TIFF, PCX, GIF and TGA Adjustable intensity 302nm UV transilluminator for both gel analysis and excision Optional 150mm x 40mm anti-UV radiation observation window Small footprint suitable for frequently used gel documentation Operation quick guide and one-click auto data process Low cost high performance gel documentation system Upgradable with EZ Chemi package
Ordering Information
| Catalog Number |
Description |
| 1141004 |
Dolphin-Doc Plus Gel Image system, complete included 16bit 5.0M pixels camera, lens, MD-25K 302nm UV- transilluminator, Epi white light, high transparent amber filter, Dolphin-1D software, PC excluded, 100-240V/50-60Hz |
| 1141012 |
Dolphin-Doc Plus/ EZ Chemi Image system, complete included 5.0M pixels Peltier -10°C below ambient cooled CCD camera, lens, MD-25K 302nm UV-transilluminator, Epi white light, high transparent amber filter, EZ Chemi software, three level sample stage, PC excluded, 100-240V/50-60Hz |
| 1155501 |
PC: Intel® Core™ i3-3240 3.4GHz, 1 G RAM, English version Windows 10 OS, 4 x USB. |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| Dolphin-1D software |
|
Dolphin-1D is a powerful molecular image software package for use with the Wealtec Dolphin-series of image systems and scanners. Besides general image enhancements such as background subtraction and image filtering, all being easily traceble, Dolphin-1D has four major analysis functions; 1-D gel molecular weight/mass determination, microtiter plate analysis, spot density calculation and colony counting.
|
|
|
|
|
| |
 |
| UV/White light converter plate |
|
Place this converter plate on top of the UV transilluminator to convert from UV illumination to white light illumination for visible wavelength imaging without damaging target samples.
|
|
|
|
|
| |
 |
| Digital Thermal Printer |
|
Digital Thermal Printer for Dolphin/KETA Image Systems.
|
|
|
|
|
| |
 |
| 49mm high transparent amber filter |
|
High transparent amber filter for Dolphin Doc plus and KETA S
|
|
|
|
|
|
|
|
|
