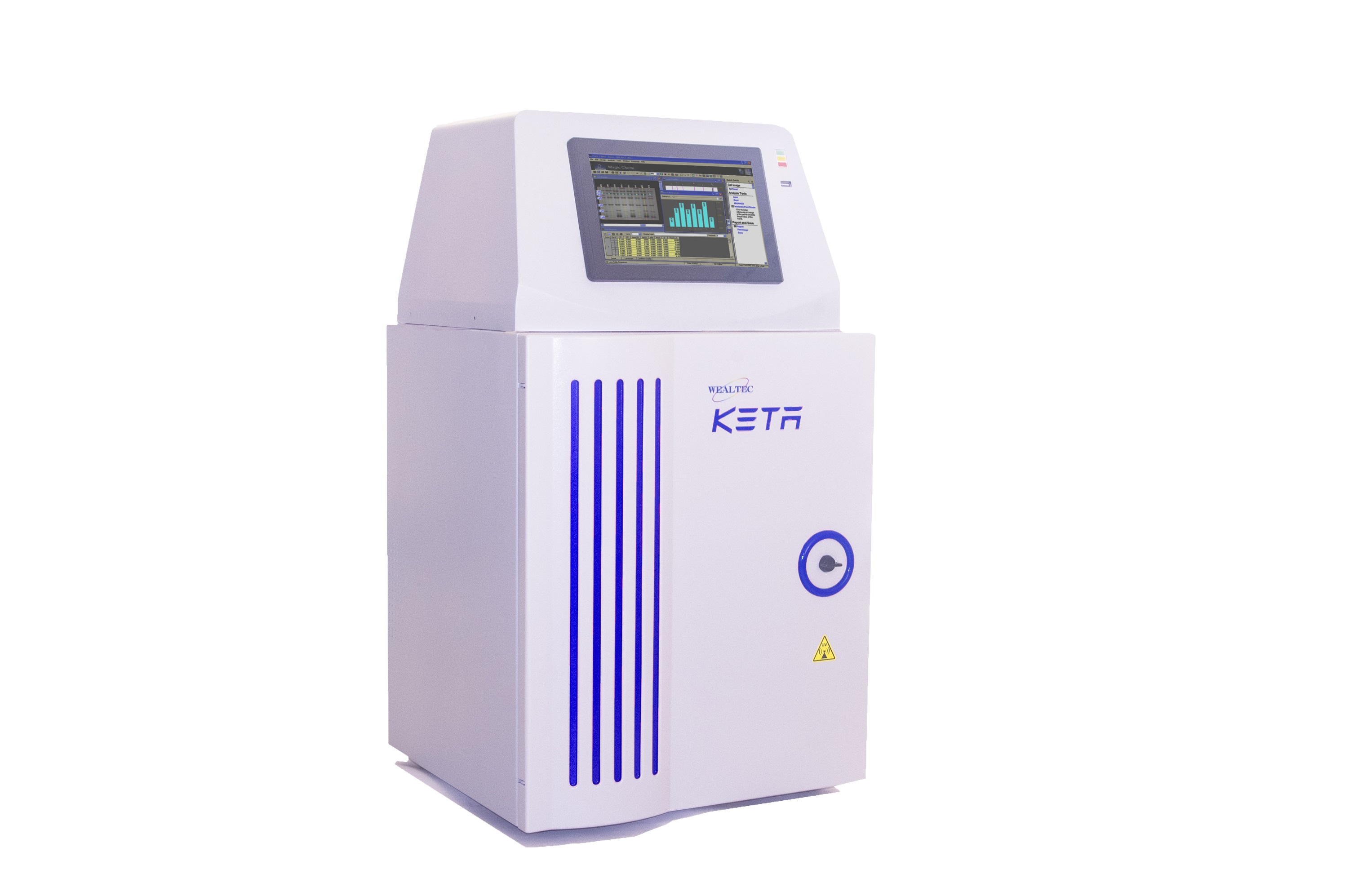

KETA MLX Imaging System

KETA MLX is the high end multi-purpose imaging system equipped superior 9.1M pixels, large chip size, three stage Peltier cooled camera, ideal for molecular biology core facility. It consists of a superior 16 bit, 9.1 megapixel Peltier cooled camera element, software controlled lens, eight position motorized filter wheel come with a high transpar ent amber filter. Large visual area, MC 200 LED light set covers the wavelength range fromvisible to NIR as Epi light source, low background 302nm /365nm dual wavelength UV transilluminator. Inbuilt 24V power supply for blue/white light sample tray, UV radiation safety interlock darkroom, 67mm WK 201 ~ WK 205 filter emission filter as standard, energy saving mode provides camera turn off automatically while idling over than 15 minutes. Preset optimum condition, method create and edit capability.Magic PLUS software package dedicate for KETA M family which integrated Magic 1D and Magic Chemi package.



Filter

 Dye/stain

WK 201

550~675nm, EtBr, SYBR Green I / II, SYBR Gold, SYPRO Red / Ruby / Orange

WK 202

525~530nm, SYBR Green

WK 203

500~555nm, Alexa Fluor Plus 488 for blue-excitable fluorophores and stains

WK 204

560~600nm, Alexa Fluor Plus 555 for green-excitable fluorophores and stains

WK 205

680~720nm, Alexa Fluor Plus 647 for light red- excitable fluorophores and stains

WK 206

730~780nm, Alexa Fluor Plus 680 for red-excitable fluorophores and stains

WK 207

810~850nm, Alexa Fluor Plus 800 for near IR-excitable fluorophores and stains
  • Specification
  • Features
  • Ordering
  • Download
Camera depth 16 bit
Operating temperature 0 - 60°C
Chip size 1”
Resolution 9.1M pixels
Cooling Peltier, 60°C below ambient
eight position filter wheel 67mm
MC 200 Epi- LED 460 ~ 780nm Standard
UV transilluminator MD-25DK
Code recognizer Standard
Blue/White light sample tray ST-BW20
Sample tray Black & White as Standard
Magic PLUS software Standard
OS system Windows 10
Filter WK 201 ~ WK 205
Physical dimension (mm) 425 x 480 x 865 (W x D x H)
Weight 30kg
Power 100-240V, 50/60Hz

Features

  • Sample tray smart drive technology

  • Optional IR excitation dye applicable

  • Optional UV Epi excitation

  • Support various file formats, PCX, TGA, DFN(GEL), PNG, IMG, TIFF, BMP, JPG, GIF, and etc.

Ordering Information

Catalog Number Description
1150041 KETA MLX system complete include light tight darkroom 9.1M pixels Peltier cooled Camera, in-build core 2 SBC, 12” touch panel LCD, UV 302nm transilluminator, white light / blue light sample tray, eight position filter wheel, motorized lens, code recognizer, WK 201-205 filter, Magic PLUS software package single user key, 100-240V, 50/60 Hz.

Download

Flyer
KETA M Multi-purpose imaging system
Application Note
Ultra-Low Noise Detection via 2 Stage Peltier-Cooled CCD
Technical Bulletin
Sensitivity of KETA MX Imaging System
Intensify the Signal Detection of KETA MX Imaging System
Compare Efficiency between KETA CL and KETA MX in Chemiluminescent Detection
Demo Software
Magic software package

Accessories

Magic Plus software Package
Magic PLUS software package dedicate for KETA M family which integrated Magic 1D and Magic Chemi package.


MD-25K UV Transilluminator
MD-25K UV transilluminator equipped with six long life 8W UV tubes with specific 302nm wavelength and 75% adjustable intensity. A 25 X 25cm low background IR cut-off filter embedded into stainless steel frame provides excellent UV radiation for gel documentation and fluorescence detection when integrated with the KETA imaging system. On/off and high/low intensity are controlled by the Magic 1D software.


WK 201 550~675 nm, 67mm amber filter for KETA Series
WK 101 550~675 nm, 55mm amber filter for KETA Series.


WK 202 525~530 nm, 67mm SYBR Green filter for KETA Series
WK 202 525~530 nm, 67mm SYBR Green filter for KETA Series.


WK 103 510~650 nm, 55mm SYPRO Ruby filter for KETA Series
WK 103 510~650 nm, 55mm SYPRO Ruby filter for KETA Series.


WK 104 HQ 610/75, 55mm filter for KETA Series
WK 104 HQ 610/75, 55mm filter for KETA Series.


WK 105 D 630/60, 55mm filter 55 for KETA Series
WK 105 D 630/60, 55mm filter 55 for KETA Series.


UV/White light converter plate
Place this converter plate on top of the UV transilluminator to convert from UV illumination to white light illumination for visible wavelength imaging without damaging target samples.


BW-20
Place this converter plate on top of the UV transilluminator to convert from UV to blue light. its emission light is specifically intensified at 490 nm blue light for SYBR Green and wtGFP detection.


Digital Thermal Printer
Digital Thermal Printer for Dolphin / KETA Image Systems.


AS 100 motorized sample stage
AS 100 motorized sample stage (factory install)


MC 100-1 multi Color W/G/B/UV (365nm) in lieu of MC 100 W/R/G/B
MC 100-1 multi Color W/G/B/UV (365nm) in lieu of MC 100 W/R/G/B (factory install)
