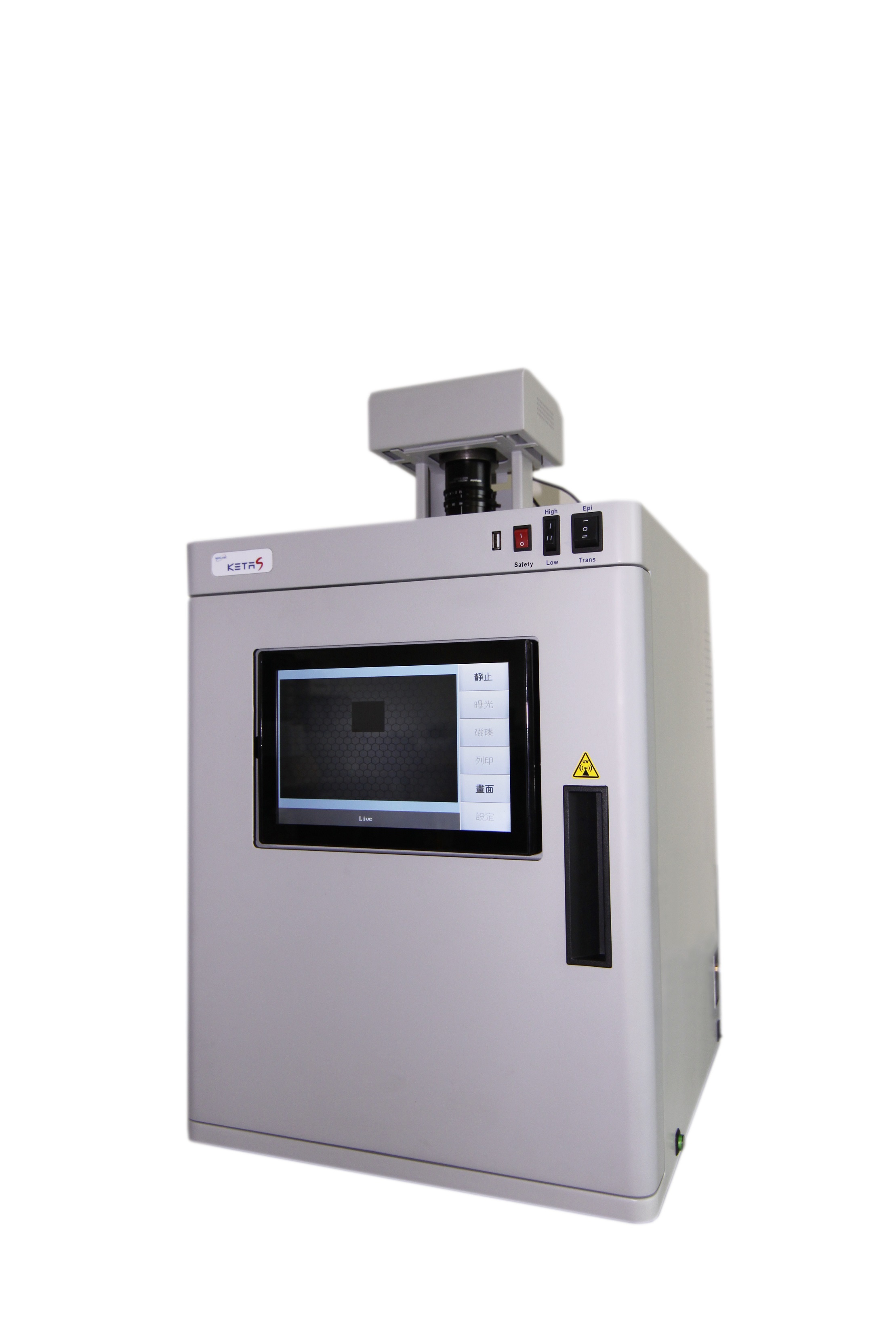

KETA S Imaging System

New break through stand alone gel documentation system is a research grade low cost maintenance free system in the market, applicable wide range accessories for molecular biology application. KETA S is a research grade cost effective gel documentation system ideally for routine and large throughput molecular biology laboratory. This unit equipped with 16bit B/W 5.0M Pixels camera, manual adjust lens, superior performance and convenient user interface, small footprint darkroom, 10.1” touch LCD display, in-build SBC, MS windows OS, USB2.0/USB3.0 port, multiple languages, UV radiation safety interlock, 24V power supply in build as standard for BW-20 blue and white light transilluminator.KETA S is a research grade cost effective gel documentation system ideally for routine and large throughput molecular biology laboratory. This unit equipped with 16bit B/W 5.0M Pixels camera, manual adjust lens, superior performance and convenient user interface, small footprint darkroom, 10.1” touch LCD display, in-build SBC, MS windows OS, USB2.0/USB3.0 port, multiple languages, UV radiation safety interlock, 24V power supply in build as standard for BW-20 blue and white light transilluminator.

Dual U7 LED Epi-White light, 302nm UV transilluminator for SDS-PAGE and agarose gel stained by EtBr, SYBR Green, SYPRO Orange, SYBR Gold, Coomassie Brilliant Blue, and silver stain by changing emission filter, optional observation window for real time electrophoresis check and gel excision.

  • Specification
  • Features
  • Ordering
  • Download

CCD depth B/W 16 bit
Chip size 2/3"
Cooling Air, R-T
Resolution 5.0M Pixels
Operating temperature 0 - 60°C
Lens f1.4, 11.5 - 69mm (6X) manual adjustment
Filter Close-up 2X & H-T Amber filter
Communication USB 2.0, USB 3.0, Wifi, Ethernet
Epi-illumination Over head dual White Light LED
UV-transilluminator 302nm, 6 x 8 Watt tubes, 25 x 25cm as standard
Control & display 10.1" 16:9 visual angle adjustable touch screen
Image file format JPG, BMP, JPEG, DFN,TIFF, PCX, GIF, TGA
Image storage USB memory stick / SSD 8G standard
Physical dimensions (mm) 430 x 450 x 550 mm, W x D x H
Power 100-240V, 50-60Hz

Features

  • Powerful Magic 1D software upgradable

  • EZ Chemi upgrade package available

  • High sensitivity low cost in the market

  • Flexible upgrade for all application

  • No service and operation training

  • Gel excision side hole option

  • Multi language support

Ordering Information

Catalog Number Description
1147026 KETA S Image includes 5.0M pixels R-T camera, manual adjust lens, dual LED Epi-White light, in-build SBC, 302nm MD-25K UV transilluminator, 10.1” touch LCD, Band Tool software,100-240V, 50 - 60Hz
1147029 KETA S / EZ Chemi Image includes 5.0M pixels Peltier 10o C below ambient cooled CCD camera, manual adjust lens, dual LED Epi-White light, in-build SBC, 302nm MD-25K UV transilluminator, 10.1” touch LCD, EZ Chemi software, three level sample stage 100-240V, 50 - 60Hz

Download

Flyer
KETA S Series Imaging System
KETA Application Flyer
Demo Software
Band tool for KETA S

Accessories

BW-20
BW-20 is equipped with selectable blue and white LED light provides most uniform trans light emission. It’s applicable for Bio-Safe applications in whole series imaging systems through built-in power source or external power adaptor.


Dolphin-1D
Easy and simple are the most important requirements for daily use laboratory. Dolphin-1D software has powerful functions for 1-D gel MW/ Mass determination, colony counting, microtiter plate analysis, and spot density calculation.


UV/White light converter plate
Place this converter plate on top of the UV transilluminator to convert from UV illumination to white light illumination for visible wavelength imaging without damaging target samples.


High transparent orange filter 49mm
High transparent orange filter for BW-20 applied in the KETA S


49mm high transparent amber filter
High transparent amber filter for Dolphin Doc plus and KETA S
