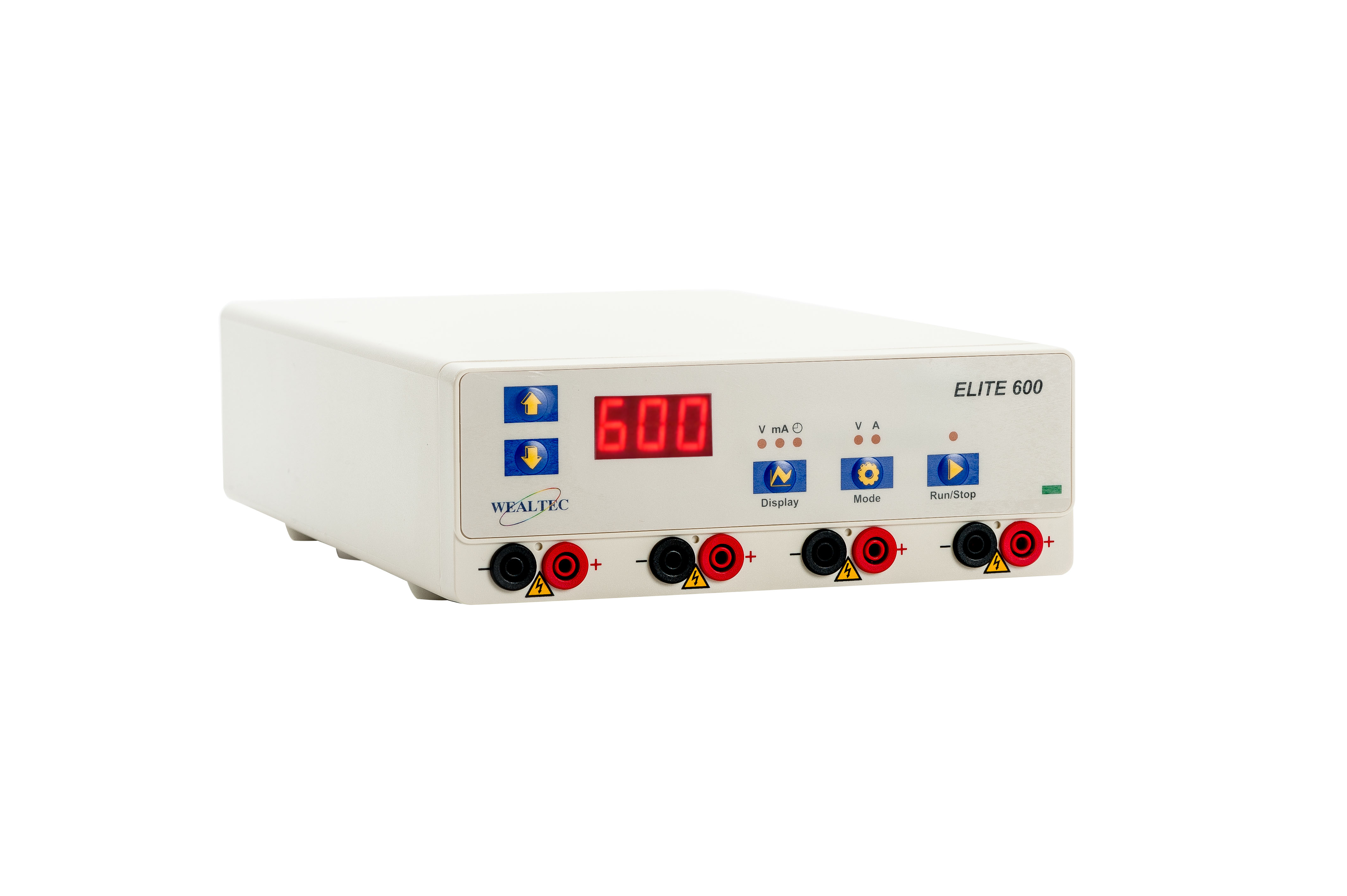

ELITE 600U is a stackable, compact and high voltage power supply that mainly used for high throughput electrophoresis. Three digits seven segments LED readout voltage, current and time. Error messages include no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1V and 1mA increment provide flexible condition and parameter settings. Four sets of output terminals with adjustable V/A while running vertical or horizontal electrophoresis, Western blotting, DGGE/CDGE/TTGE/TDGS. ELITE 600U serves perfect combination and excellent result to the Multi-Cell.
- Specification
- Features
- Ordering
- Download
| Voltage automatic |
Yes |
| Current automatic |
Yes |
| Output Terminals |
4 sets |
| Current adjust steps |
1-750 mA in 1 mA |
| Voltage in 1 volt steps |
5-600 V |
| Output power |
150 W max. |
| Operating Temperature |
0-40℃ |
| Timer |
0-999 mins |
| Display |
3 digit 7 seg LED |
| Touch Pad |
Yes |
| Alarm |
Yes |
| Input Power |
100-240V , 50-60 Hz |
| Physical dimensions |
240 x 320 x 73mm (W x D x H) |
| Weight |
2kg |
| Certification |
CE |
*The spec is subject to change without prior notice.
**ELITE 200/300/200U/300U/600U power supply comply with EN 61010-1
| |
Features
No load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, current differential alarm
Three digit seven segment LED read out voltage, current and time
Small footprint, stackable, outshell use fire resistance material
Trustable and accurate power source in the market
Complete error messages for trouble shooting
Membrane key pad for functional setting
Up to four sets output
Ordering Information
| Catalog Number |
Description |
| 1001031 |
ELITE 600U Power Supply, 5-600V, 1-750mA, 100-240V, 50-60Hz |
Download
| Flyer |
| Elite U series power supply |
 |
| Technical Bulletin |
| Low Voltage Transfer via Ultra Stable Power Supply |
|
|
|
 |
