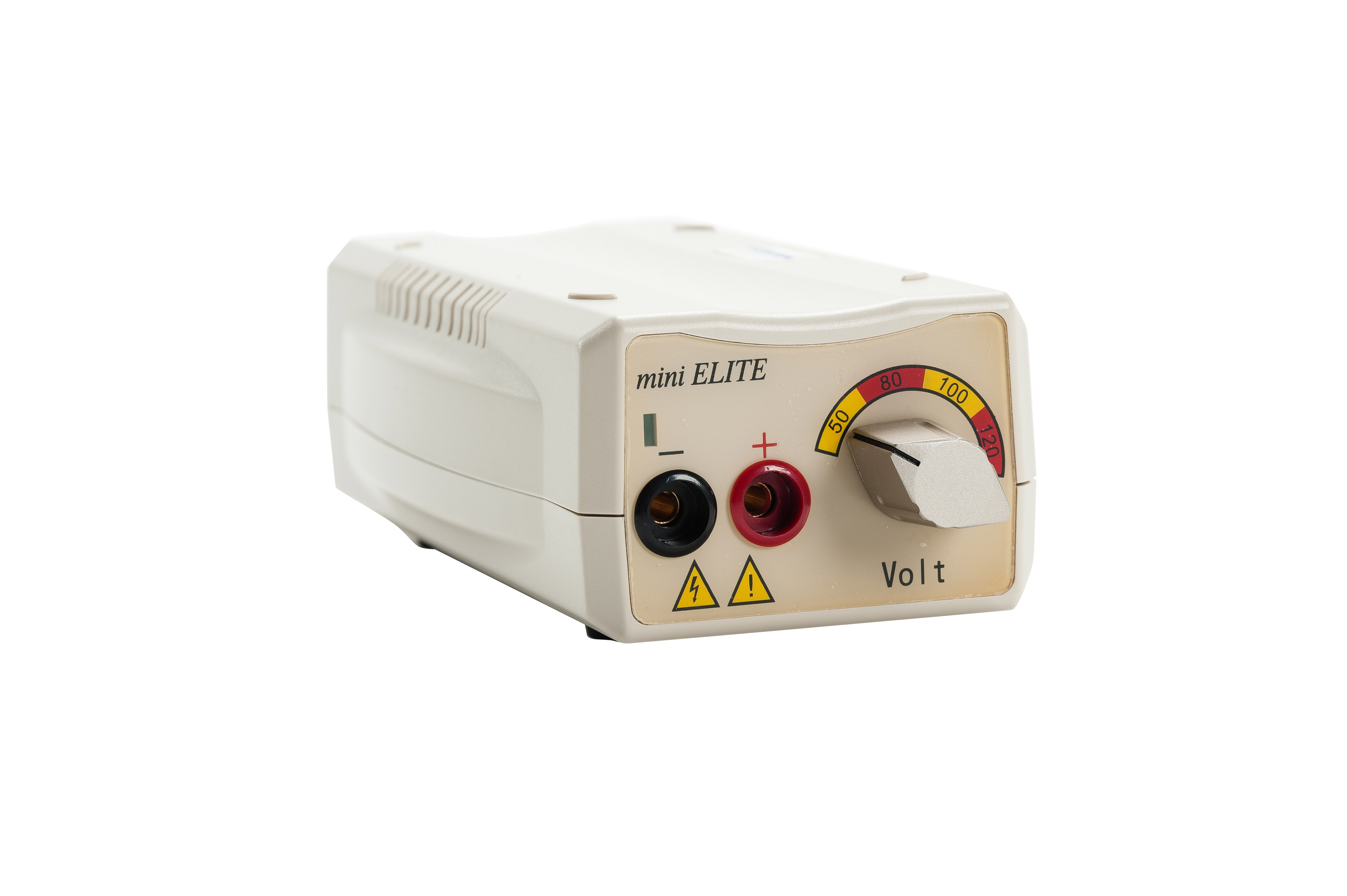

Mini ELITE is a compact and economical power supply with selectable output the constant voltage of 50 /80 /100 /120V, 200mA, 20W max. The power supply is mainly for running gel electrophoresis with nucleic acid and SDS-PAGE.
- Specification
- Features
- Ordering
- Download
| Voltage automatic |
Yes |
| Current automatic |
Yes |
| Output Terminals |
1 sets |
| Current adjust steps |
- |
| Voltage in 1 volt steps |
50/80/100/120V |
| Output power |
20 W max. |
| Operating Temperature |
0-40℃ |
| Timer |
0-999 mins |
| Display |
- |
| Touch Pad |
Selectable switch |
| Alarm |
- |
| Input Power |
90-264V, 50/60 Hz |
| Physical dimensions |
84 x 175 x 52mm (W x D x H) |
| Weight |
0.6kg |
| Certification |
CE |
*The spec is subject to change without prior notice.
**ELITE 200/300/600/Mini ELITE power supply comply with EN 61010-1
| |
Features
Small footprint, stackable, out-shell use fire resistance material
4 constant voltage outputs for general electrophoresis
Universal input power supply
Ordering Infromation
| Catalog Number |
Description |
| 1001007 |
Mini ELITE Power Supply, 90-264V, 50-60Hz |
Download
| Flyer |
| Elite U series power supply |
 |
| Technical Bulletin |
| Low Voltage Transfer via Ultra Stable Power Supply |
|
|
|
 |
